SECTOR · 01
Large-acreage ranches
Perimeter coverage on 500+ acre cattle and game ranches.
PASSIVE PERIMETER SENSING · Meerkat
Property security through passive RF sensing.
TrailSense monitors three RF channels in parallel: wideband RF power across 20 MHz to 4 GHz, 802.11 WiFi 2.4 GHz, and Bluetooth Low Energy. Our proprietary detection & device fingerprinting engine - built specifically for this hardware - correlates the evidence and tracks devices across MAC rotation. No cameras. No active transmissions.
RF coverage
20–4000MHz
Autonomous
24/7
Sensing channels
3× RF

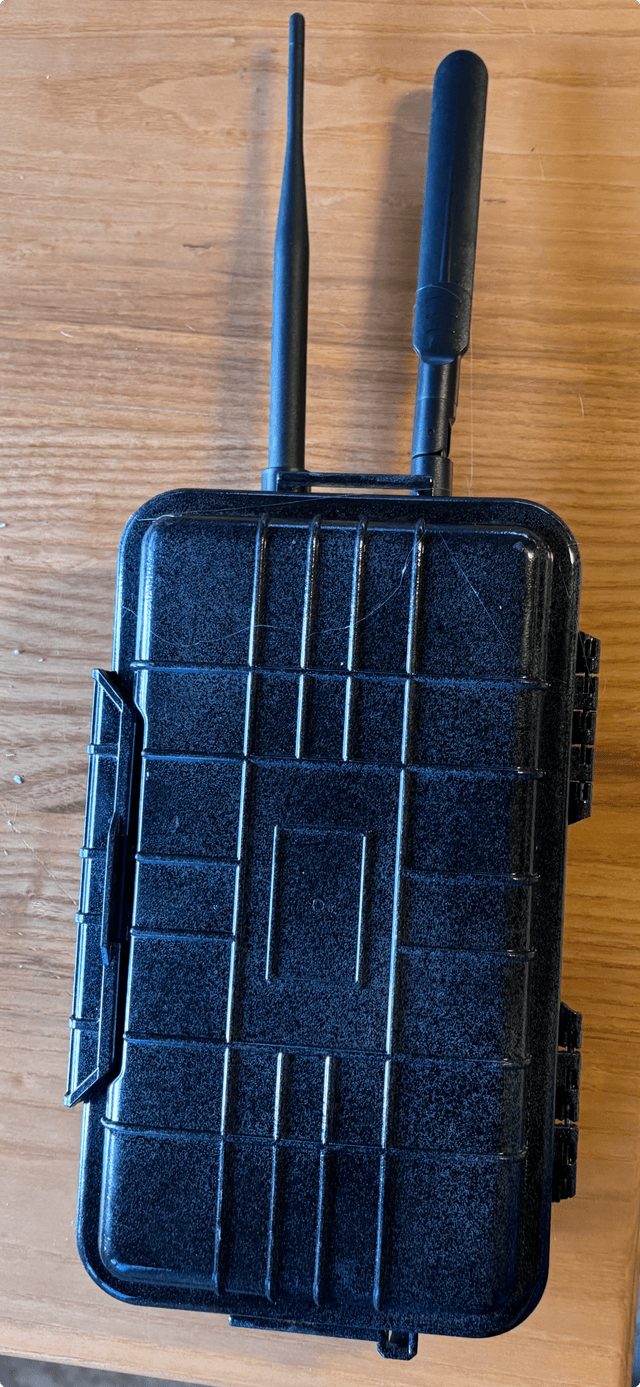

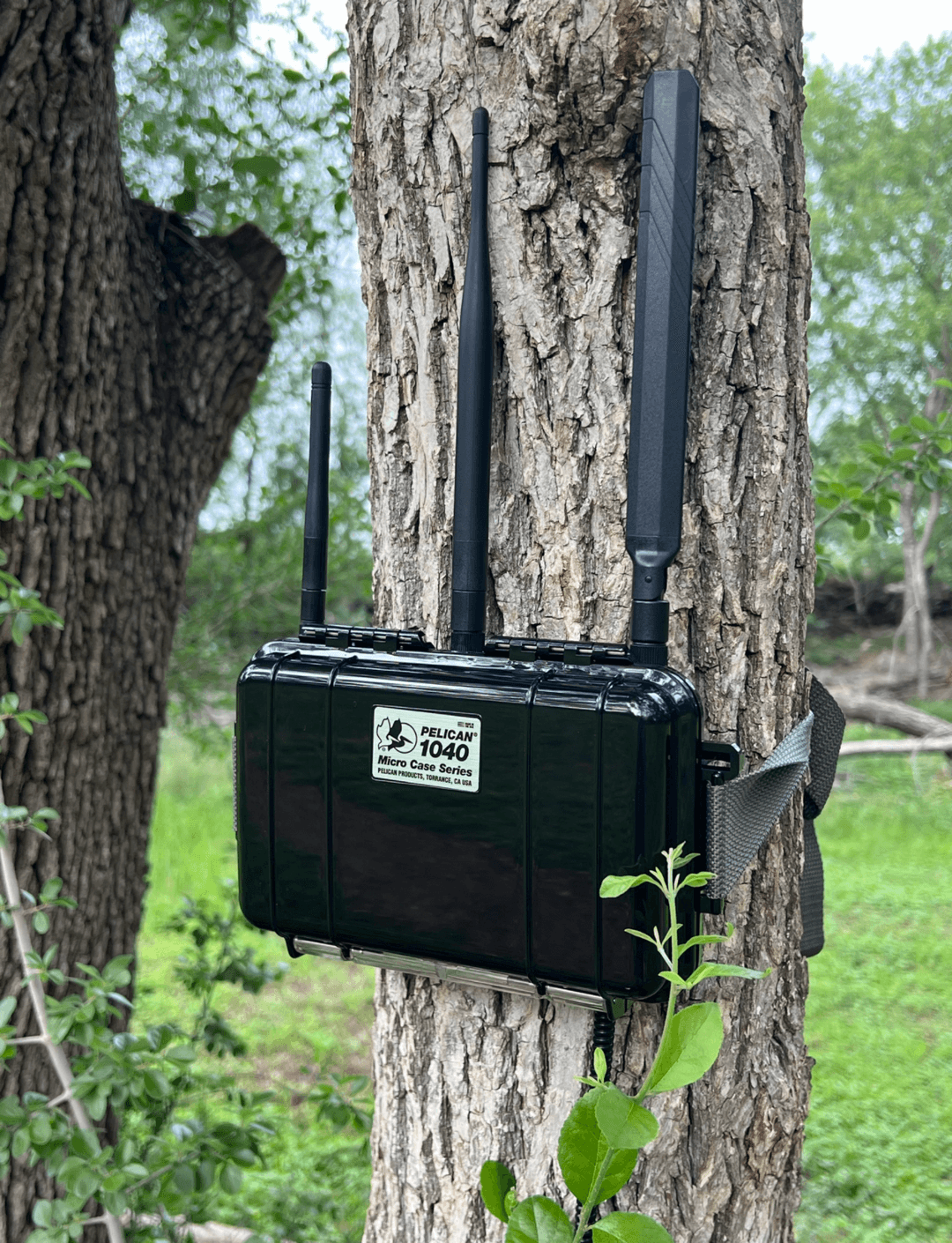

UNIT ID · MeerkatFIG. 01
RF · WIFI · BLESCANNING
CAPABILITIES · 01
SENSING CHANNELS// 03
Three RF channels. One fused picture.
Each TrailSense unit runs three concurrent sensing channels: a wideband analog RF detector, an 802.11 WiFi sniffer, and a passive BLE scanner. Our proprietary detection engine fuses the evidence and resolves the same device seen across multiple channels into one detection.
01 · WIDEBAND RF
Analog RF burst detection.
The Meerkat passively monitors RF energy from 20 MHz to 4 GHz. When a transmission breaks the noise floor, the firmware logs a burst. No protocol decoding, no active emission.
Coverage20 – 4000 MHz
DetectorAD8317 LOG
LNA gain~20 dB
02 · WIFI 2.4 GHZ
802.11 management-frame capture.
Promiscuous-mode capture of probe requests and beacons. 802.11 information-element fingerprinting tracks devices across MAC randomization, so a single phone reads as one device, not twelve.
ModePROMISCUOUS
FramesPROBE / BEACON
MAC rotationIE-FINGERPRINTED
03 · BLUETOOTH BLE
Passive advertisement scanning.
A BLE GAP scanner reads advertiser address, manufacturer ID, and device name from every BLE broadcast in range. A phone-likeness heuristic separates handsets from generic IoT trackers.
ModePASSIVE SCAN
StackBLE GAP
ClassifierPHONE-LIKENESS
COMPANION APP · 02
iOS · ANDROID// TRAILSENSE.APP
Find your units. Read the field. Ask the AI.

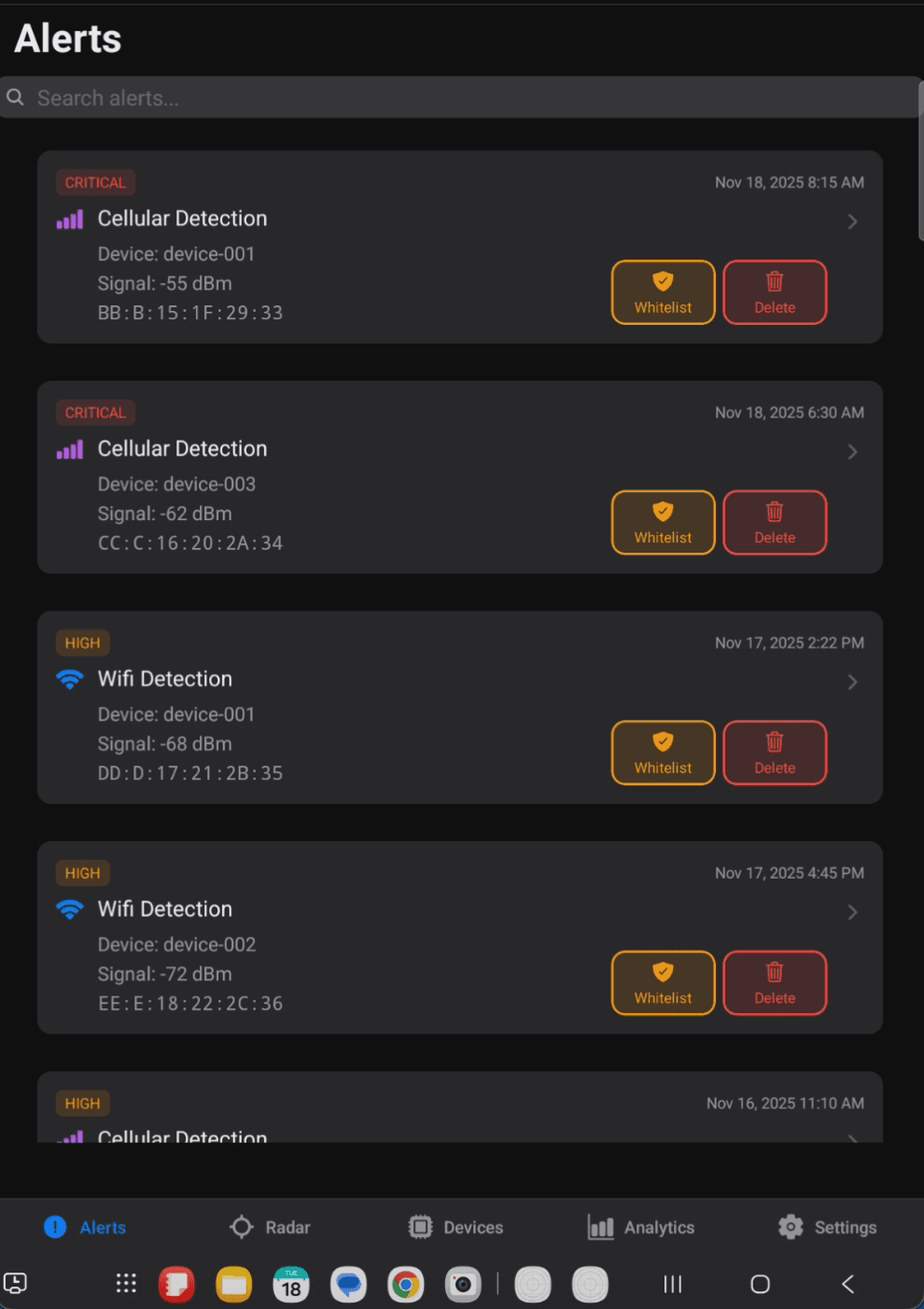

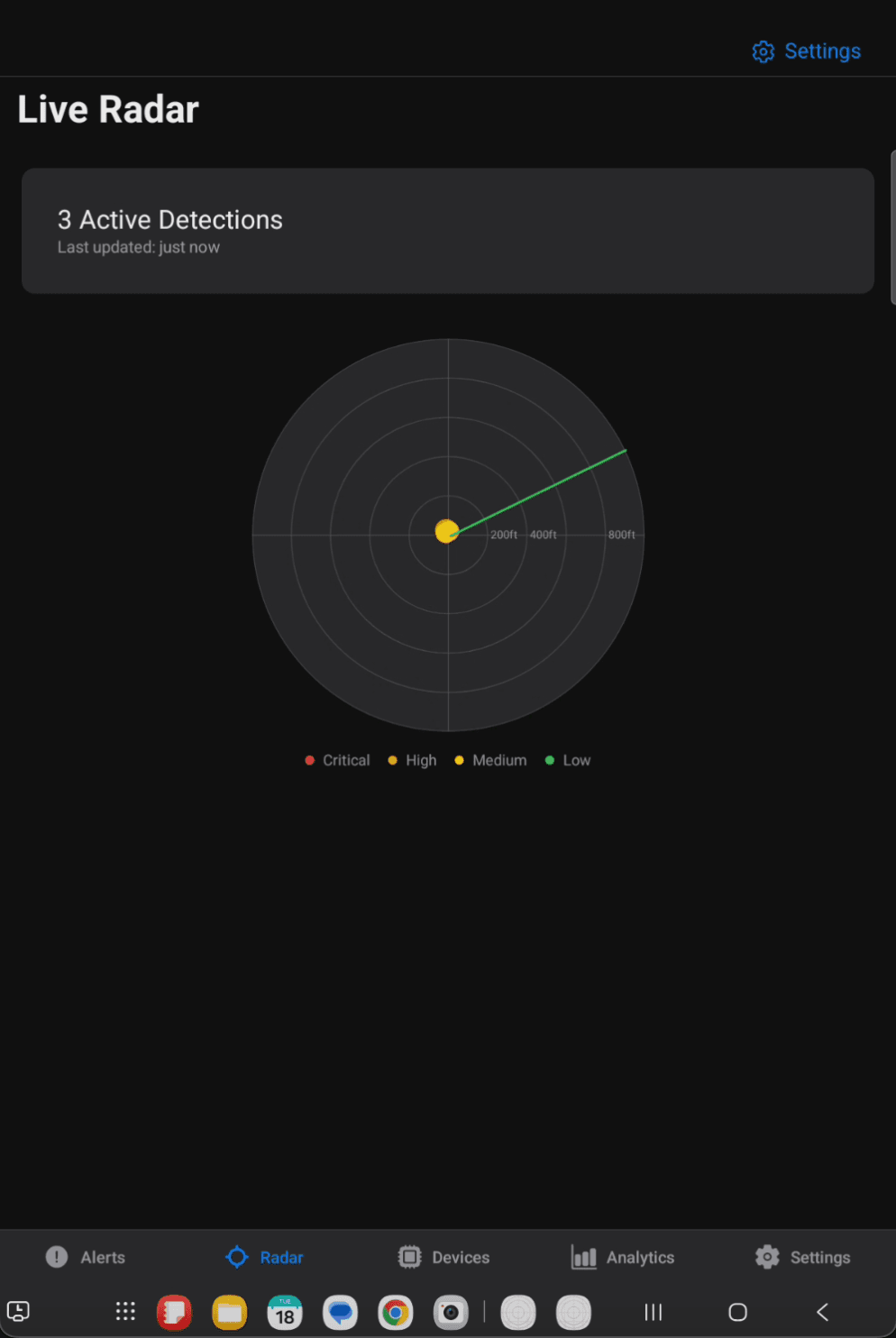

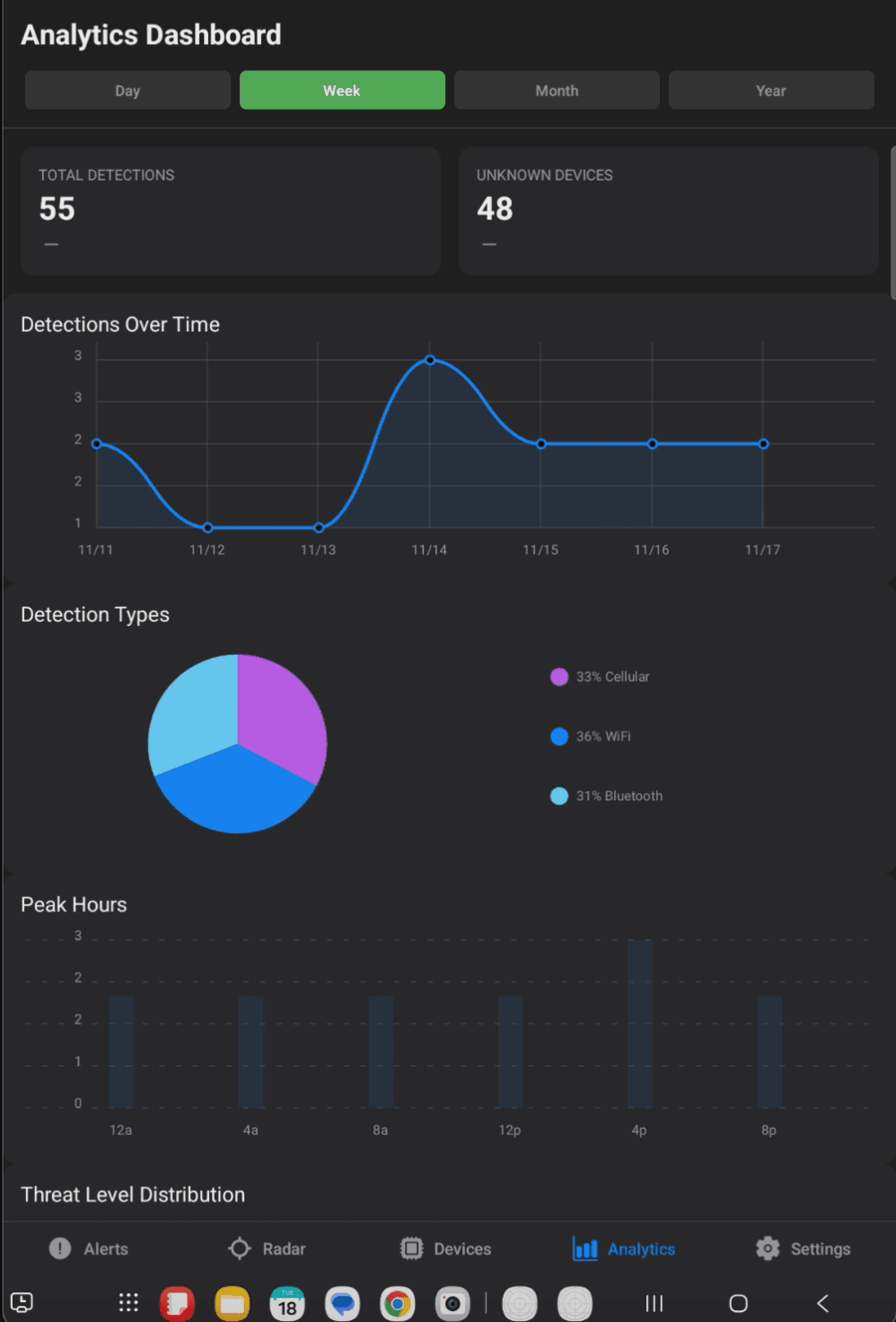

The TrailSense app turns deployed hardware into a live picture of the property. Find any unit by compass or route, see every detected device on a tactical map, and ask an on-device LLM for a real-time situation report.

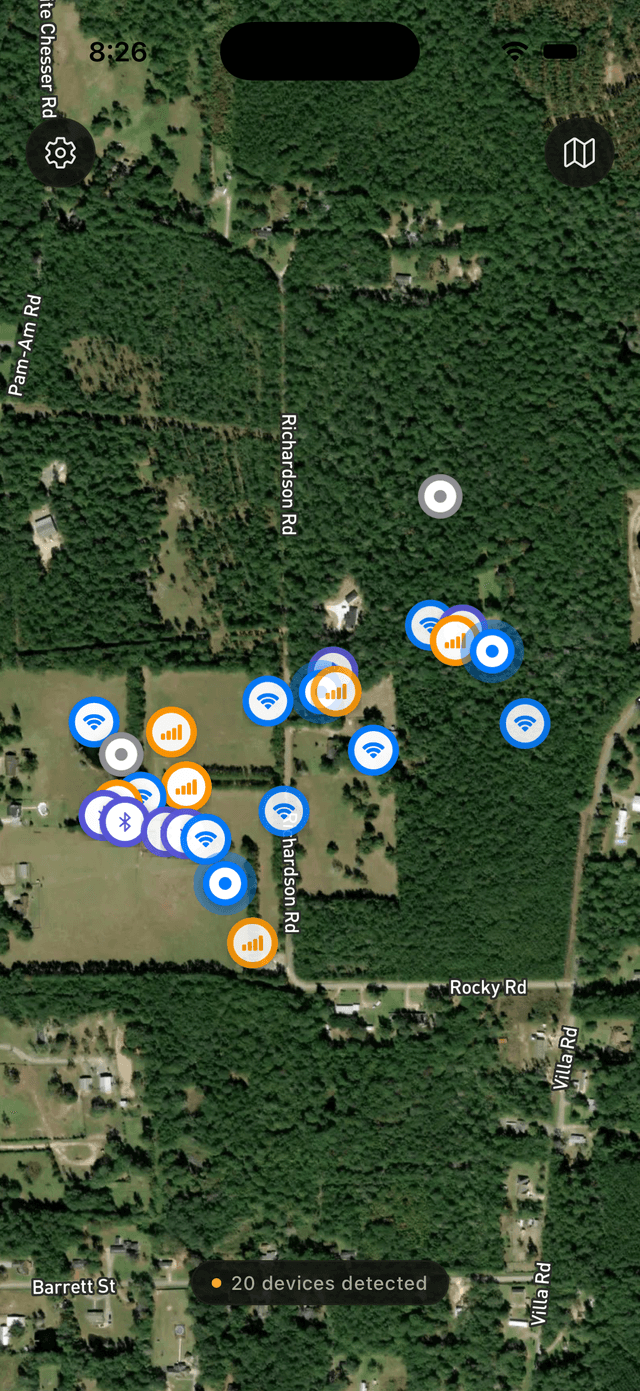

FEATURE · 01 · MAP
Your property, at a glance.
The main app view. Every deployed TrailSense unit and every detected device on a single live map of your property. Tap any pin for status, signal, and history.

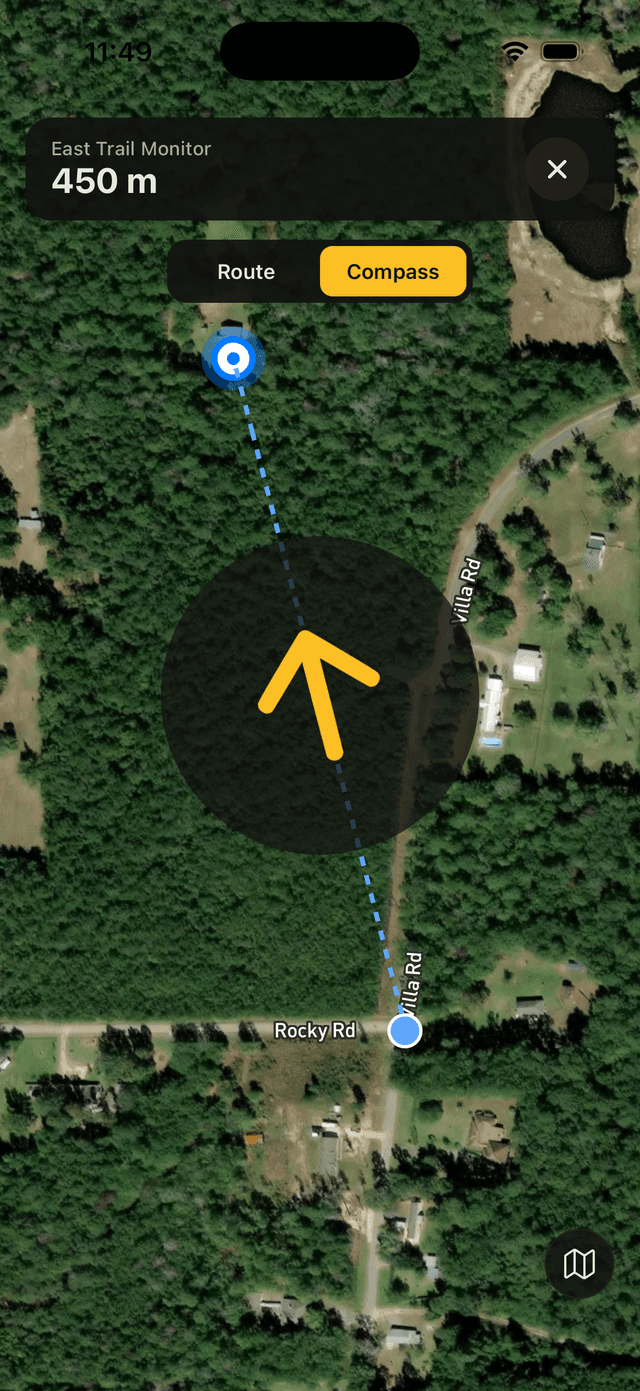

FEATURE · 02 · COMPASS
Find any unit, as the crow flies.
A live directional bearing to any deployed TrailSense unit. Pulled from GPS, refreshed in real time. For when you need the unit, not the route to it.

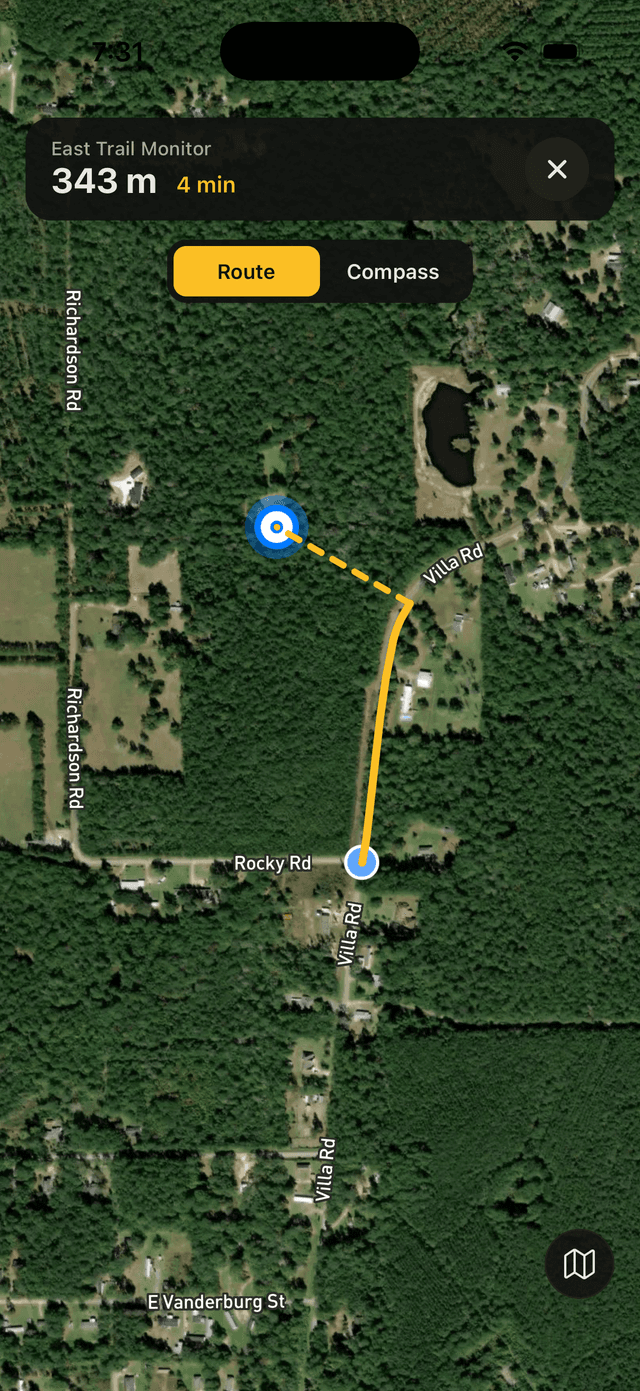

FEATURE · 03 · ROUTE
Drivable navigation to your unit.
When the property is bigger than line-of-sight, the app gives you turn-by-turn navigation along ranch roads, fire trails, and access tracks.

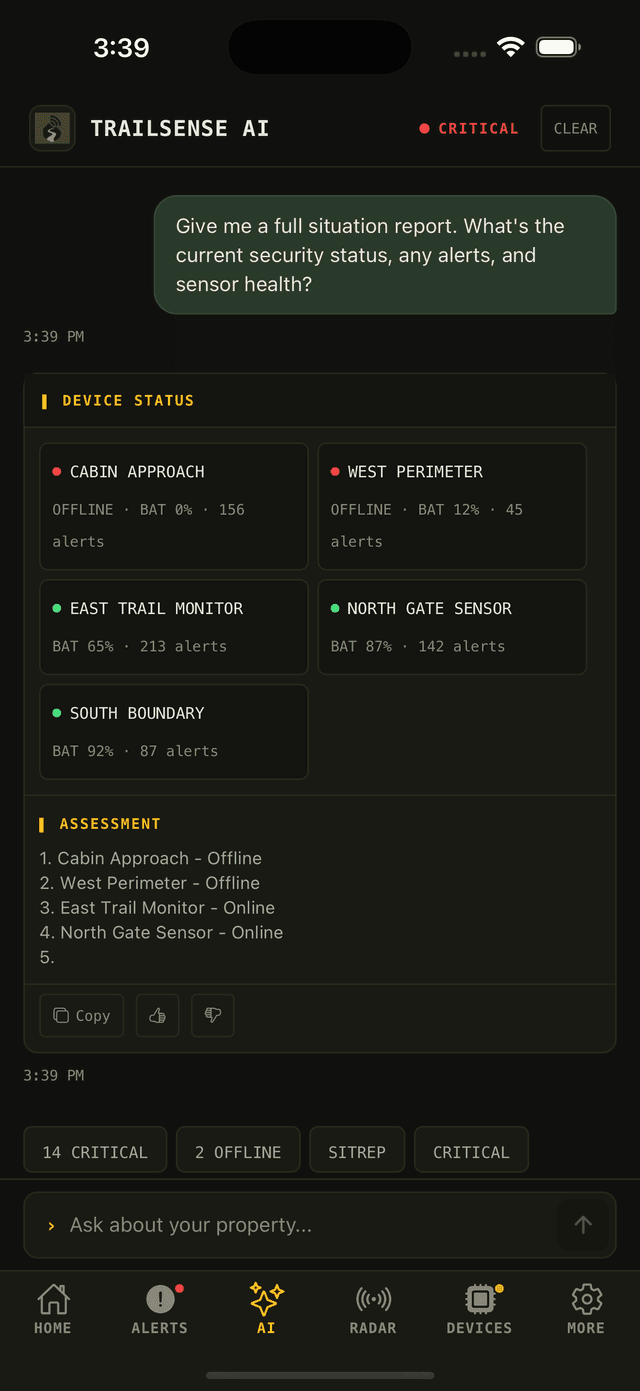

FEATURE · 04 · TRAILSENSE AI
Ask the property what's happening.
An on-device LLM with full access to your unit data. Ask for a situation report, query alert history, or surface anomalies - all running locally, no cloud.
Built for property that doesn't fit inside a fence.
500-acre cattle ranches. Anti-poaching corridors. Solar farms in the high desert. Wherever a perimeter is too long to staff and too important to leave unwatched, TrailSense puts a passive sensor in the ground and a live picture in your pocket.
SPECIFICATIONS · 03
SPEC SHEET · Meerkat// REV 04
Built for the field.
RF coverageLNA pass-band on the analog channel. AD8317 detector itself extends to 10 GHz at reduced gain.20 – 4000 MHz
DetectorAD8317 logarithmic RF power detector, 60 dB dynamic range.−55 → 0 dBm
LNAWideband ultra-low-noise amplifier, bias-tee compatible.~20 dB gain
WiFi / BLE sensitivityRSSI threshold below which a frame is ignored. Tunable at runtime.−85 dBm
Detection enginePurpose-built fingerprinting and fusion logic. Kalman-filtered RSSI, 802.11 IE fingerprinting, phantom-MAC suppression, cross-modal WiFi↔BLE association.IN-HOUSE
LocalizationMulti-position multilateration. Resolves device location while the platform moves.TRIANGULATION
UplinkLTE PPP backhaul to Golioth (CoAP)LTE · COAP-DTLS
PowerSolar panel + lithium-ion. Runs continuously while powered.12V DC
EnclosureOutdoor-rated housing for fence, post, or tree mount.IP67-class
DEPLOYMENTS · 04
FIELD APPLICATIONS// 04 SECTORS
Where TrailSense is in the ground.
From private ranches to managed conservation areas to perimeter lines on staffed sites, every deployment is tuned to the property's actual threat profile.
SECTOR · 02
Conservation reserves
Anti-poaching alerts on protected land and wildlife corridors.
SECTOR · 03
Industrial sites
Perimeter intrusion data for solar farms, oil fields, telecom towers.
SECTOR · 04
Tactical / LE
Deployable surveillance for state, federal, and special-use teams.
GET STARTED · 05
ENGAGE// 02 PATHS
Two ways to get on the radar.
Talk to us about a deployment that's already mapped, or get on the waitlist and we'll reach out as units come available in your region.
PATH · 01 · DEMO
Request a live demo.
30 minutes. We walk you through a real deployed unit, show the app and AI assistant, and price out what coverage looks like for your property.
- Live unit demo over video
- Coverage map for your property
- Deployment quote with timeline
PATH · 02 · WAITLIST
Join the waitlist.
Not ready for a demo? Drop your email and we'll reach out when units are deploying in your area, or when major capability releases ship.
